WANFi Control and Billing Management System

准备工作

• 硬件要求

CPU:    >= 4 core
Memory: >= 16GiB
Storage:
    OS:     >= 50GiB
    /opt/wfc:   >= 50GiB   # work and database storage
    /var/lib/docker: >= 50GiB

• 系统环境

Linux >= Ubuntu 22.04
JDK >= 1.8 (Recommended version 1.8) (用于Omada SDN Controller)
docker >= 24.0.7, build 24.0.7-0ubuntu2~22.04.1
docker-compose >= v2.10.0

• 安装docker和docker-compose

    sudo apt-get update
    sudo apt-get install -y docker.io
    sudo curl -L "https://github.com/docker/compose/releases/download/v2.10.0/docker-compose-$(uname -s | tr '[:upper:]' '[:lower:]')-$(uname -m)" -o /usr/bin/docker-compose
    sudo chmod +x /usr/bin/docker-compose

• 请确认docker和docker-compose的版本是否符合要求

    docker -v
    docker-compose -v

获取安装包

安装包名： wfc-1.0.2-20241212.tar.gz

说明：

• 版本号： 1.0.2
• 构建日期：20241212

根据情况获取最新版本的软件安装包

安装和配置软件

• 创建安装目录

    sudo mkdir /opt/wfc

• 解压软件包至安装目录

    sudo tar xvfz wfc-1.0.2-20241212.tar.gz -C /opt/wfc

• 安装后目录树

/opt/wfc                    # work root directory
├── bin                     # shell script and binary file
├── docker                  # docker compose work directory
│   ├── env                 # default docker environment file, will be copy to docker compose work directory
│   ├── java                # java image directory
│   ├── mysql               # mysql database container directory
│   │   ├── conf
│   │   ├── conf.d
│   │   ├── data
│   │   ├── db
│   │   ├── logs
│   │   └── tmp
│   ├── nacos               # nacos container directory
│   │   ├── conf
│   │   └── logs
│   ├── nginx               # nginx container directory
│   │   ├── conf
│   │   ├── conf.d
│   │   ├── html
│   │   │   └── dist
│   │   │       ├── sys     # system portal
│   │   │       └── u       # user portal
│   │   └── logs
│   ├── redis               # redis container directroy
│   │   ├── conf
│   │   └── data
│   └── wfc                 # wfc container root directory
│       ├── auth            # auth root directory
│       │   └── jar
│       ├── gateway         # gateway root directory
│       │   └── jar
│       ├── modules         # modules root directory
│       │   ├── file
│       │   │   └── jar
│       │   ├── gen
│       │   │   └── jar
│       │   ├── job
│       │   │   └── jar
│       │   ├── payment
│       │   │   └── jar
│       │   ├── system
│       │   │   └── jar
│       │   └── user
│       │       └── jar
│       ├── upload          # file upload directory
│       └── visual
│           └── monitor
│               └── jar
└── systemd                 # service daemon file，will be copy to /etc/systemd/system
    └── system

• 配置软件

    cd /opt/wfc/bin
    sudo ./wfcsetup.sh all 192.168.13.128   # 参数2是宿主机IP地址

• 修改docker环境参数

根据实际情况修改如下环境参数配置(*WFC_SERVER_IP的地址已经在上面配置过程被替换)：

    cd /opt/wfc/docker
    cat .env
        WFC_CONFIG_DATABASE=wfc_config_db
        WFC_SYSTEM_DATABASE=wfc_system_db
        WFC_USER_DATABASE=wfc_user_db
        MYSQL_SERVICE_NAME=wfc-mysql
        MYSQL_SERVICE_PORT=3306
        MYSQL_ROOT_PASSWORD=123456
        MYSQL_SERVICE_USER=root
        MYSQL_SERVICE_PASSWORD=123456
        REDIS_PORT=6379
        NACOS_PROFILE_NAME=prod
        NACOS_NAME_SPACE=wfc-prod
        NACOS_SERVER_NAME=wfc-nacos
        WFC_SERVER_PORT=80
        NACOS_SERVER_PORT=8848
        GATEWAY_SERVER_PORT=8080
        AUTH_SERVER_PORT=8081
        WFC_FILE_PORT=9201
        WFC_JOB_PORT=9203
        WFC_PAYMENT_PORT=9204
        WFC_SYSTEM_PORT=9205
        WFC_USER_PORT=9206
        WFC_SERVER_IP=192.168.13.128
        NACOS_SERVER_IP=${WFC_SERVER_IP}
        GATEWAY_SERVER_IP=${WFC_SERVER_IP}
        RESTART_OPTION=on-failure:5

配置整合Omada平台的连接参数

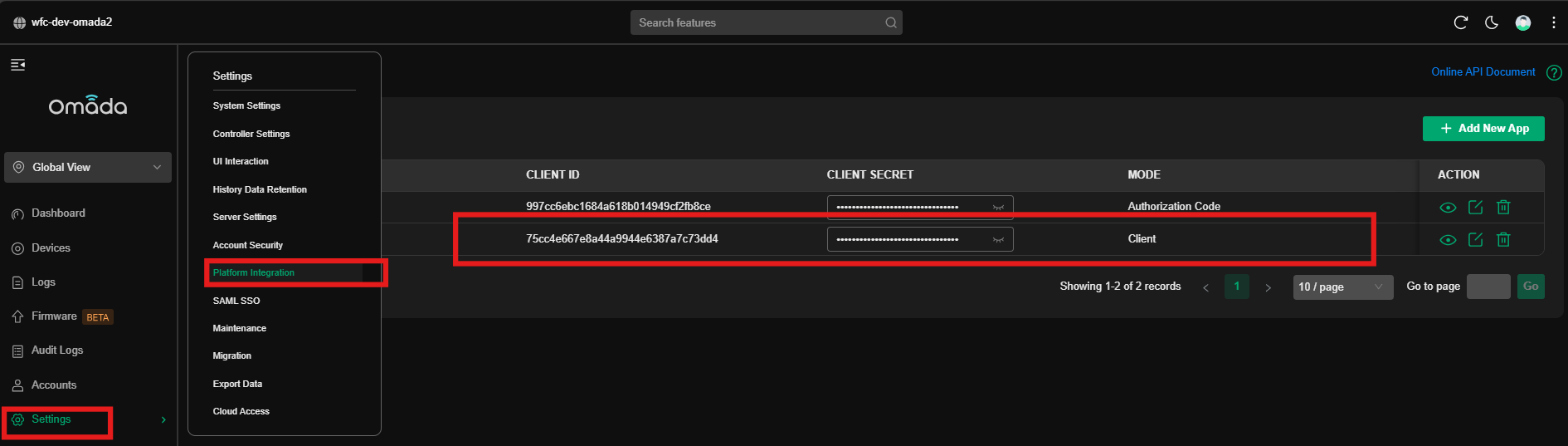

• 从Omada服务中获取门户平台整合连接参数，如下图：

注意：连接的MODE采用Client， 具体的配置方式可参考Omada的相关文档

• 修改配置文件

修改如下omada的配置项

    cd /opt/wfc/conf
    cat application-common.yml
        spring:
            autoconfigure:
                exclude: com.alibaba.druid.spring.boot.autoconfigure.DruidDataSourceAutoConfigure
            mvc:
                pathmatch:
                matching-strategy: ant_path_matcher
            # 资源信息
            messages:
                # 国际化资源文件路径
                basename: i18n/messages

        # feign 配置
        feign:
            sentinel:
                enabled: true
            okhttp:
                enabled: false
            httpclient:
                enabled: true
                disable-ssl-validation: true
            client:
                config:
                default:
                    connectTimeout: 60000
                    readTimeout: 60000
            compression:
                request:
                enabled: true
                min-request-size: 8192
                response:
                enabled: true

        # 暴露监控端点
        management:
            endpoints:
                web:
                exposure:
                    include: '*'

        # Omada 配置
        omada:
            omada-url: 'https://192.168.2.249:8043'
            omadac-id: 'f3aa6e479b94222581523710cc2c2a9d'
            client-id: '5036e77c81a74008821c694a715fe2b8'
            client-secret: '29faa06fb7f244b094377b48eb3083a7

• 启动/查看/停止/版本软件

    cd /opt/wfc/bin
    sudo ./wfccontrol.sh start/restart/status/stop/version

通过浏览器访问客户平台和用户平台

• 客户平台门户地址：

http://192.168.13.128/sys

• 用户平台门户地址：

http://192.168.13.128/u
