WANFi软件快速安装

准备工作

  • 硬件要求
CPU:    >= 4 core
Memory: >= 16GiB
Storage:
    OS:     >= 50GiB
    /opt/wfc:   >= 50GiB   # work and database storage
    /var/lib/docker: >= 50GiB
  • 系统环境
Linux >= Ubuntu 22.04
JDK >= 1.8 (Recommended version 1.8) (用于Omada SDN Controller)
Omada SDN Controller > 5.15.6.7
docker >= 24.0.7, build 24.0.7-0ubuntu2~22.04.1
docker-compose >= v2.10.0
docker-buildx >= 0.14.1
  • 安装docker, docker-compose和buildx插件
    sudo apt-get update
    sudo apt-get install -y docker.io

    # 安装docker-compose-v2插件
    sudo apt-get install -y docker-compose-v2
    sudo ln -s /usr/libexec/docker/cli-plugins/docker-compose /usr/bin/docker-compose

    # 安装docker-buildx插件
    sudo apt-get install -y docker-buildx
    sudo ln -s /usr/libexec/docker/cli-plugins/docker-buildx /usr/bin/docker-buildx
  • 请确认docker, docker-compose和buildx插件的版本是否符合要求
    docker -v
    docker-compose -v
    docker buildx version

获取安装包

  • TAR安装包

文件名： wfc-1.0.7-20250221.tar.gz

  • DEB安装包

文件名：wfc-1.0.7-20250221.deb

说明：

  • 版本号： 1.0.7
  • 构建日期：20250221

根据情况获取最新版本的软件安装包

安装和配置软件

TAR包安装方式

  • 创建安装目录

全新安装时需要此步骤，如果升级安装，则保留原有目录

    sudo mkdir /opt/wfc
  • 解压软件包至安装目录
    sudo tar xvfz wfc-1.0.7-20250221.tar.gz -C /opt/wfc

DEB包安装方式

  • 安装软件包
    sudo dpkg -i wfc-1.0.7-20250221.deb
  • 安装后目录树
/opt/wfc                    # work root directory
├── bin                     # shell script and binary file
├── docker                  # docker compose work directory
│   ├── env                 # default docker environment file, will be copy to docker compose work directory
│   ├── java                # java image directory
│   ├── mysql               # mysql database container directory
│   │   ├── conf
│   │   ├── conf.d
│   │   ├── data
│   │   ├── db
│   │   ├── logs
│   │   └── tmp
│   ├── nacos               # nacos container directory
│   │   ├── conf
│   │   └── logs
│   ├── nginx               # nginx container directory
│   │   ├── conf
│   │   ├── conf.d
│   │   ├── html
│   │   │   └── dist
│   │   │       ├── sys     # system portal
│   │   │       └── u       # user portal
│   │   └── logs
│   ├── redis               # redis container directroy
│   │   ├── conf
│   │   └── data
│   └── wfc                 # wfc container root directory
│       ├── auth            # auth root directory
│       │   └── jar
│       ├── gateway         # gateway root directory
│       │   └── jar
│       ├── modules         # modules root directory
│       │   ├── file
│       │   │   └── jar
│       │   ├── gen
│       │   │   └── jar
│       │   ├── job
│       │   │   └── jar
│       │   ├── payment
│       │   │   └── jar
│       │   ├── system
│       │   │   └── jar
│       │   └── user
│       │       └── jar
│       ├── upload          # file upload directory
│       └── visual
│           └── monitor
│               └── jar
└── systemd                 # service daemon file，will be copy to /etc/systemd/system
    └── system
  • 配置软件环境
    cd /opt/wfc/bin
    sudo ./wfcsetup.sh env 192.168.13.128   # 参数2是宿主机IP地址
  • 修改docker环境参数

根据实际情况修改如下环境参数配置，说明： ** WFC_SERVER_IP的地址已经在上面配置过程被替换 ** TZ替换为宿主机系统时区

    cd /opt/wfc/docker
    cat .env
        WFC_CONFIG_DATABASE=wfc_config_db
        WFC_SYSTEM_DATABASE=wfc_system_db
        WFC_USER_DATABASE=wfc_user_db
        MYSQL_SERVICE_NAME=wfc-mysql
        MYSQL_SERVICE_PORT=3306
        MYSQL_ROOT_PASSWORD=123456
        MYSQL_SERVICE_USER=root
        MYSQL_SERVICE_PASSWORD=123456
        REDIS_PORT=6379
        NACOS_PROFILE_NAME=prod
        NACOS_NAME_SPACE=wfc-prod
        NACOS_SERVER_NAME=wfc-nacos
        WFC_SERVER_PORT=80
        NACOS_SERVER_PORT=8848
        GATEWAY_SERVER_PORT=8080
        AUTH_SERVER_PORT=8081
        WFC_FILE_PORT=9201
        WFC_JOB_PORT=9203
        WFC_PAYMENT_PORT=9204
        WFC_SYSTEM_PORT=9205
        WFC_USER_PORT=9206
        WFC_SERVER_IP=192.168.13.128
        NACOS_SERVER_IP=${WFC_SERVER_IP}
        GATEWAY_SERVER_IP=${WFC_SERVER_IP}
        RESTART_OPTION=on-failure:5
        TZ=Asia/Shanghai                            #docker容器的时区

如果这些容器环境参数没有更改，可以直接运行如下命令设置环境和创建容器：

    cd /opt/wfc/bin
    sudo ./wfcsetup.sh all 192.168.13.128   # 参数2是宿主机IP地址
  • 创建docker容器

如果已经运行'sudo ./wfcsetup.sh all 192.168.13.128'，如下命令可省略

    cd /opt/wfc/bin
    sudo ./wfcsetup.sh all

配置整合Omada平台的连接参数

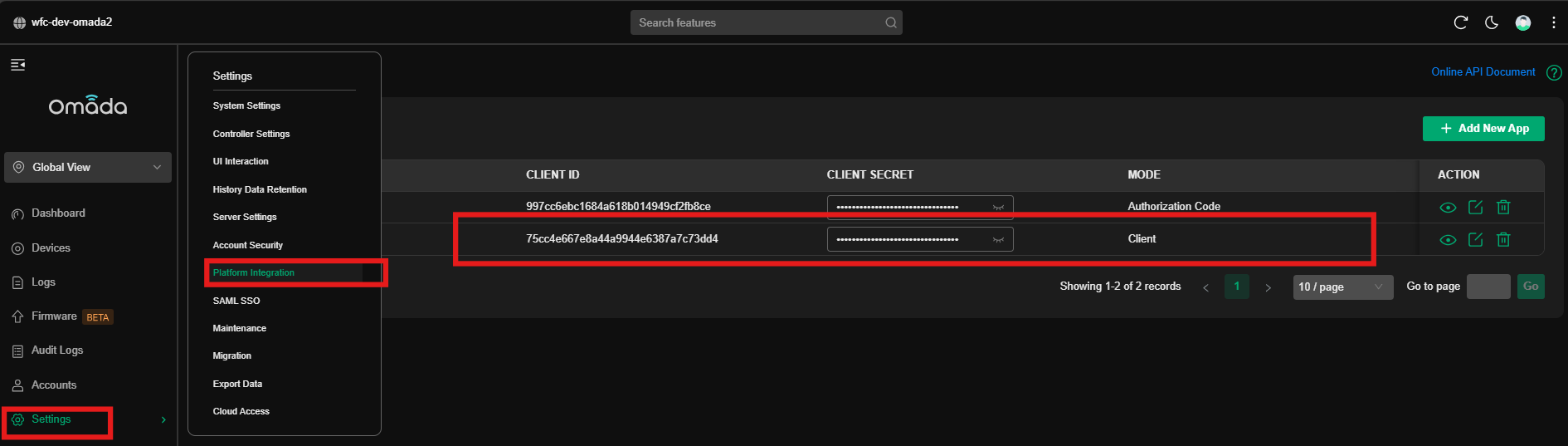

  • 从Omada服务中获取门户平台整合连接参数，如下图：

Omada platform integration configuration screenshot

注意：连接的MODE采用Client， 具体的配置方式可参考Omada的相关文档

  • 修改配置文件

    • 修改如下omada的配置项, 用于与Omada进行平台整合
        cd /opt/wfc/docker/conf
    cat application-common.yml

        ...

        # Omada config
        omada:
        # web url or host exp: 'https://192.168.2.249:8043'
        omada-url: 'https://aps1-omada-northbound.tplinkcloud.com'
        omadac-id: 'c4decbf73f80094019d664506ec9b4d4'
        client-id: '6110a77822234243a033e652d1e8a3ae'
        client-secret: '651957da95f14f45b719876bb68bd6f5'

        ...
    • 修改如下email的配置项, 用于发送邮箱验证码
        cd /opt/wfc/docker/conf
    cat application-common.yml

        ...

        mail:
            enabled: true
            host: mail.agrandtech.com
            port: 25
            # Enable authentication
            auth: true
            # Sender, follows RFC-822 standard
            from: smtpext <smtpext@agrandtech.com>
            # User name
            user: smtpext
            # Password
            pass: Smtp123@agt
            # Use TLS security connection
            starttlsEnable: false
            # Use SSL security connection
            sslEnable: false
            # Timeout value for sending mail, in milliseconds
            timeout: 0
            # Connection timeout value, in milliseconds
            connectionTimeout: 0

        ...

    • 在omada放行邮箱相关域名

      为了支持用户在首次登录AP时，无网络权限情况下，能够获取邮箱的验证码，可以在Omada上对邮箱相关的域名进行放行操作，具体操作如下：

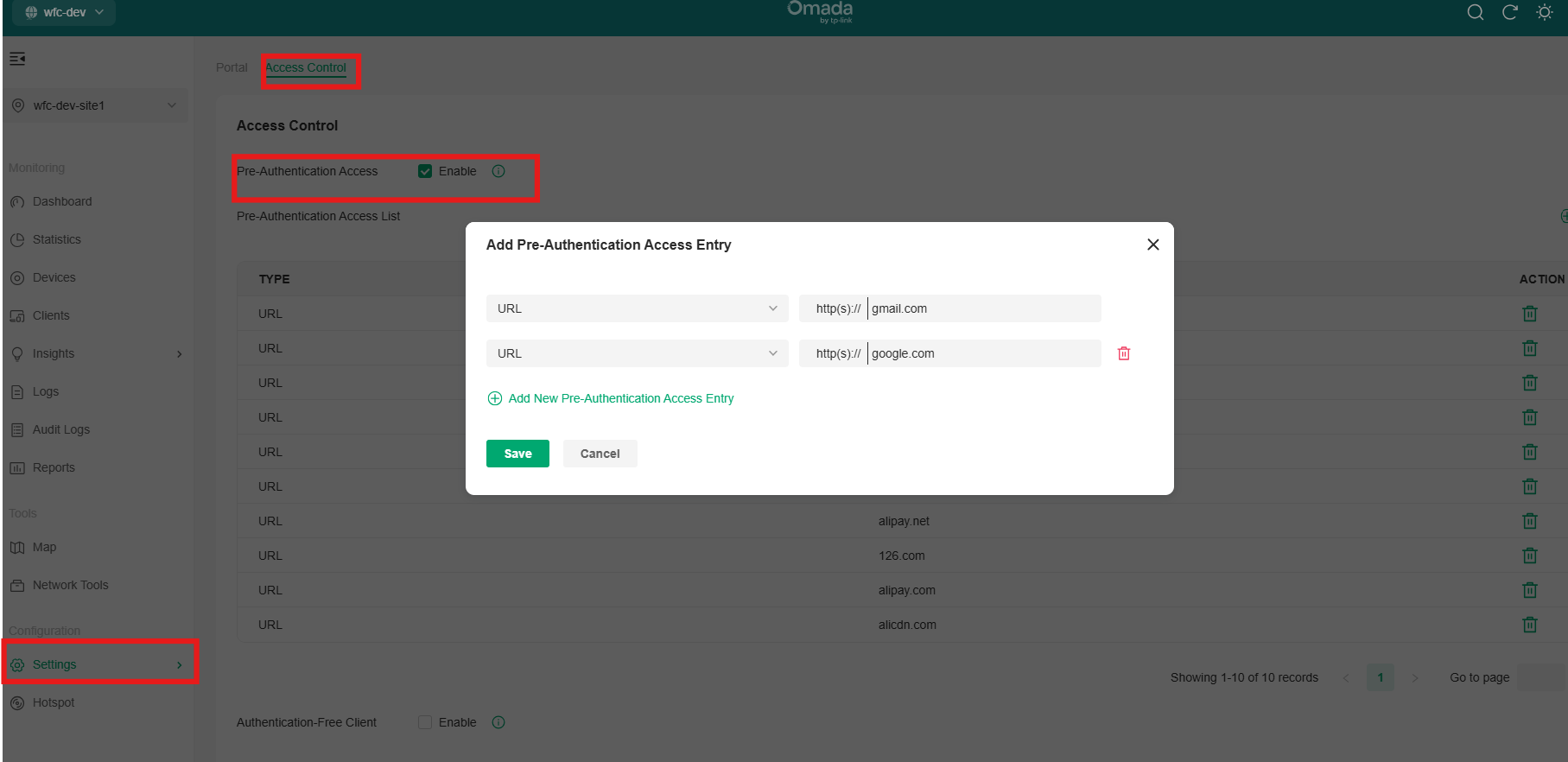

      进入Omada后，选择需要配的站点，选择Settings->Authentication->Portal->Access Control->Pre-Authentication Access->勾选Enable，然后将该邮箱相关的域名增加到Pre-Authentication Access List, 注意需将所有访问邮箱涉及的所有域名都进行放行配置，下列图所示（放行的域名不一定完整）：

    • 修改支付配置项

        cd /opt/wfc/docker/wfc/modules/payment/conf/
    cat application.yml

        ...

        # payment configuration,
        # alipay configuration
        alipay:
            appId: 9021000122699258
            privateKey: MIIEvwIBADANBgkqhkiG9w0BAQEFAASCBKkwggSlAgEAAoIBAQC7YAcIXV5GJlTWBOoBcrVG1zKxHunznSjYXwTS2DM3YgloxzKye4apfcmBDVnoL93m4QrJTtbiHYvu4yJjJfJsQEY+Wo44IczhDypyu+Il6JpQOwylTs94/+3aaQ1wThsDaGs8edaFGteuw+1pUVl4nxF00fS1VoIR30riqAGFAXrPhcSA6Y9c8HK1htxCelICnPzjpqC4s8ZjrjS7FoyHP2ZAay5fx1VEtah30E4RvycFfV/i2+k3JGFOSeevdCx6Ufu+9Y/RaG4Sh84QuYRQUhAHUswlFDHpRrAnxHzt0zDkOkg3BrCT7vMtBbSOP9BdIhpVTaZm4diQdNbLSl4hAgMBAAECggEAKb1Xc7aQ1KGfTlmj4xSxawlvImOXjAwbWC+6fFlq91BgdjXBhl7b/Y+mvpfBymY3UUIaTAPC/HXGgT2ZoGqImTKsMyGrArgM0qm1M//EfdtV3L96rqxirTqduoSiWL0daWHuWXduoRH8r9K3ZTmY67TLh7FpiKevq9mI7fqs8/qgq5QAN4UPFb3Cq9hDNTU4l6+Bywdg1KkwJ2Jc98SlrIdVl+1eCMAgueLR0aNHTobyPBZ/KfwGRV0OQ3QqjLVgL3zlbzuylYhaZqPgxxd46vgWwkyMiiv7u2OyCetq4LFd+tcNDz0Yqk6rK9/S0oxbN8NM5DLkpwFh/433BoPS3QKBgQD/dsxNr2PYdPLp6pOvw7H2AFMH8CkwTlRg+2f/0fgQF14rJwZgEU6fL5A2JvQeRRC5mCff2m5tDqrS321JNyH/JIKJ+4J8I34GEo/kSCHL3RmyvJGQOQ/EpEyxvP8BV3ob6UO3LR58DOGlJr8eTsr3Y8o9cAMuknCNxvsd2LvybwKBgQC7xKkx4KIPBny6sCOtChOkgIrY3hOCi+ZsHQVESXKzeku0NkH/qrAG+S9pb1XCzXdM2HrzkMeuz6tqi+2TY8nORyY2DZHNW7FqzkAiZ/NO2AgGIlALq1ZfJZke2MxgtBnxSsQ03gfXP9opu/FsLH9a+s6edfHPvKD4kHxlLBfAbwKBgQDYvr6QmuKn4HHJLZGoau0uvw+ziHwp1AubTTLrxgYmAO2Qx0eNcqG2RfChQWOV2xtZnFMYhodyWCNvTsm2eOSLSTrIP3ByStq95DnZganLAgivsXX/W6qZOJ0poCTryoB79enSHKHktjksmjdFS6zBQRVyEvtgJDcC03Rz2lN8WQKBgQCCoJE4otb7bv7s/ccEBeOeaNKvhue5xUwbYKEeXZ6PYAA0sh5+GCf34flq90qJiFl7u4rl0Y4pfk35hLlV9XEasYLSzePmIuktrakOhpTNABus8MgRJjSjYsvAmwCsMf9uTx5qzSBVThWfPSH6qIY9LAj8Un9UjxzJb/Mqi19GvwKBgQC0/KB+3robTqy9KOV4iEKJ4kmnXDRu7ecpMyc8k5HzpolIHcXLZHkBK9pMCXBQ9Kwy6BjRGNnUZOahS+tvnMcjHpwdhu90r7D51GXW/+PeFtphYTscFhHv1yuWbbojzhKf69pZnsVmyllIBqRgtbkS2WNHxWo/peCg47TcLaQNMA==
            publicKey: MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAhBZoE6p1TKpd/WsAJRTA2D6yUTzqLmZ73scxbPxxKwPIg2ys2Ap21u/lVmqBWO9Wf2Z7wUwr/6BP1PQqVpg0GAqU3yjjZ0LGfBitzMBMbGrlOLqJQ3PKgnUNmnOdLR4FlHCAjKtuyxjHkxBTHg/L4punk4lkFJQD8YvzFrYalS6WYw5j1/oq080NbcjPirPCRlsU7MRraQuUqSTdPwm2iHkroKwCEbGv+RtNJCfOkKNQVtRFFgPGMhU4nQ620gdfzsGJsNFKVJnD5SjeDWniBAbaGaVF4rEfKJPe6+XrcMg3h+9Fz+A2IU1KCCoth2neEZEaU1t0KBGxXIuo4efi/QIDAQAB
            appCertPath: \u5E94\u7528\u516C\u94A5\u8BC1\u4E66
            aliPayCertPath: \u652F\u4ED8\u5B9D\u516C\u94A5\u8BC1\u4E66
            aliPayRootCertPath: \u652F\u4ED8\u5B9D\u6839\u8BC1\u4E66
            serverUrl: https://openapi-sandbox.dl.alipaydev.com/gateway.do
            domain: http://192.168.2.249
            testDomain: http://129.204.171.210:8085

        # wxpay configuration
        wxpay:
            appId:
            appSecret:
            mchId:
            partnerKey:
            certPath:
            domain: http://192.168.2.249/u

        ...

    • 在omada放行支付相关域名

      为了支持用户在首次登录AP时，无网络权限情况下，能够购买套餐或者余额充值正常进行支付，需要在Omada上对支付相关的域名进行放行操作，具体操作如下：

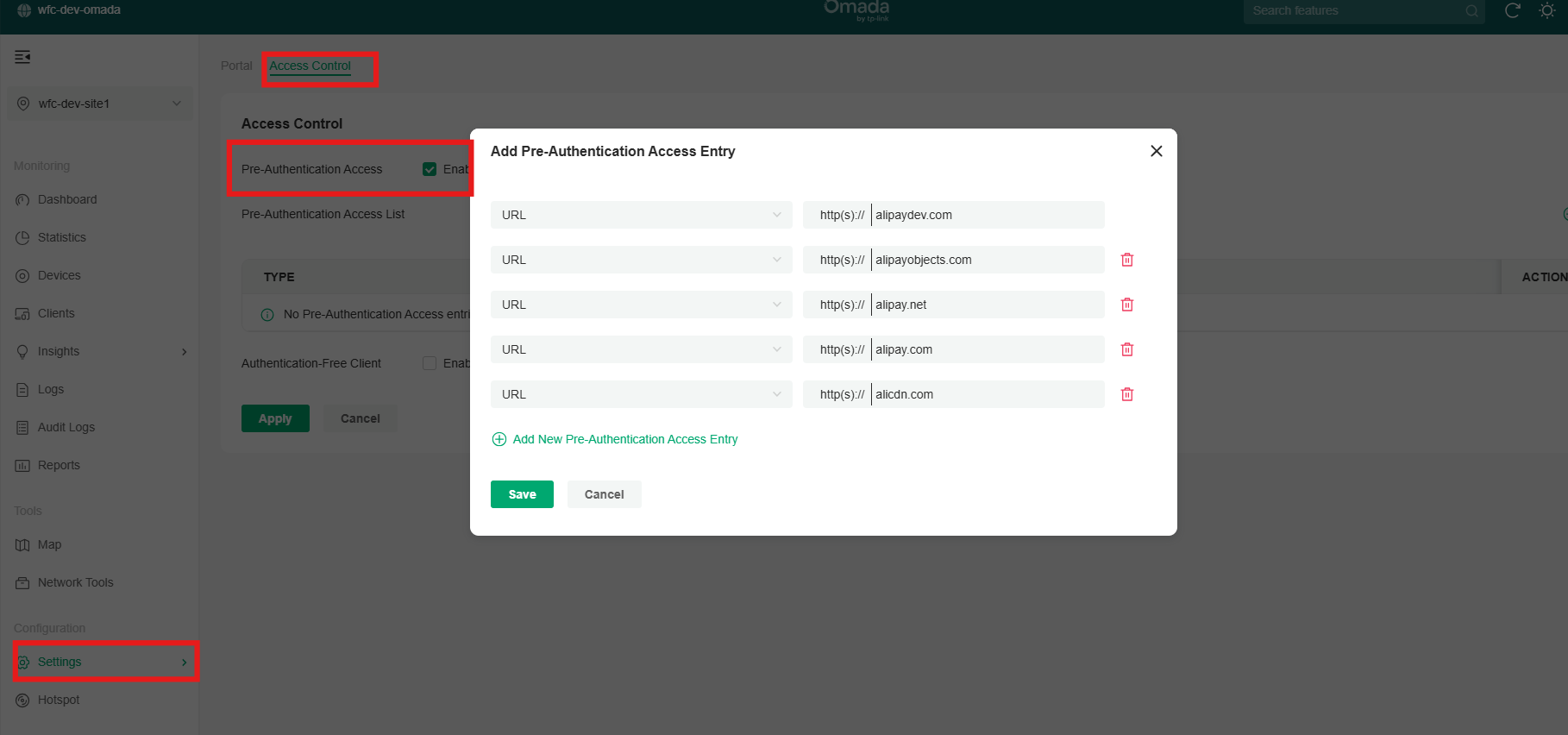

      进入Omada后，选择需要配的站点，选择Settings->Authentication->Portal->Access Control->Pre-Authentication Access->勾选Enable，然后将该支付方式相关的域名增加到Pre-Authentication Access List, 注意需将所有支付涉及的所有域名都进行放行配置，下列图所示（放行的域名不一定完整）：

  • 邮件内容自定义

    客户平台邮件模板位于/opt/wfc/docker/conf/templates/system/mail.html 客户平台邮件模板位于/opt/wfc/docker/conf/templates/user/mail.html 修改邮件模板即可，修改后直接生效，模板采用Thymeleaf引擎，支持html语法，可自定义文本内容和样式。 除了验证码占位符和失效时间占位符10，其余内容均可自定义修改

  • 启动/查看/停止/版本软件

    cd /opt/wfc/bin
    sudo ./wfccontrol.sh start/restart/status/stop/version

通过浏览器访问客户平台和用户平台

  • 客户平台门户地址：
http://192.168.13.128/sys
  • 用户平台门户地址：
http://192.168.13.128/u
